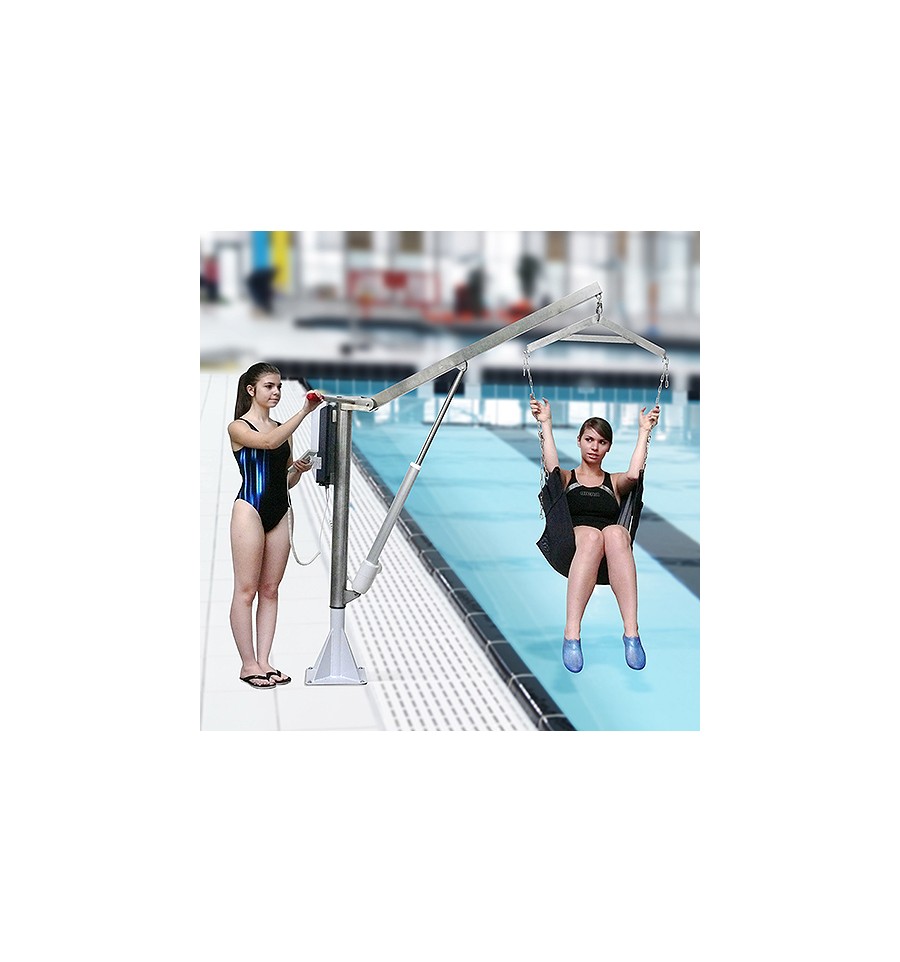

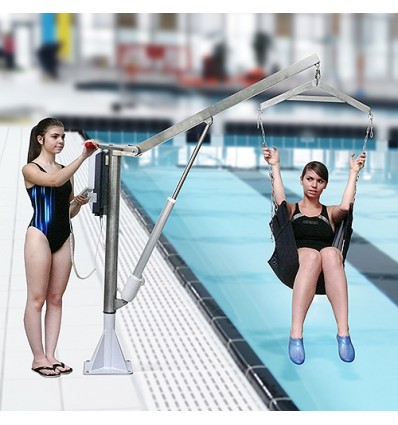

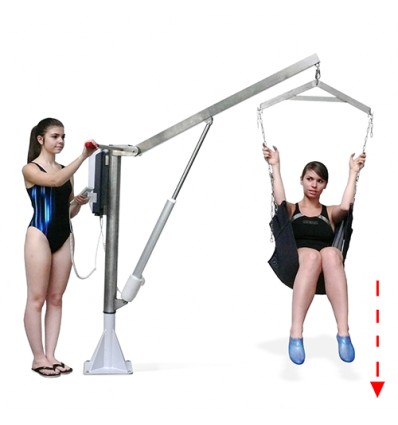

This lift permits to transfer the handicapped person into the buried swimming pool

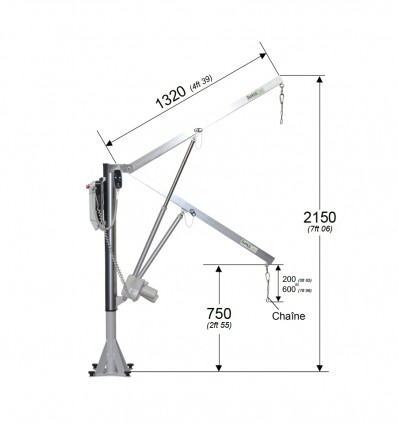

It is constituted with a pivoting column articulated with an arm in order to hang either a hammock or a rigid seat or a waterchair.
Mobile, turning on 360°, it is moved by an electric actuator 230 or 110/24 volts (capacity 1 ton),
equipped with a battery (capacity 30 times), with also a remote control with submersible commande,
a second spare battery and a charger on the wall

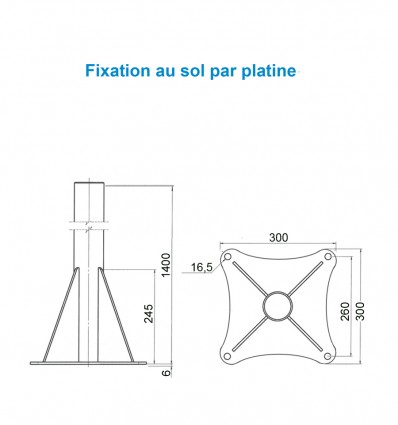

Fixation on the soil with a plate,

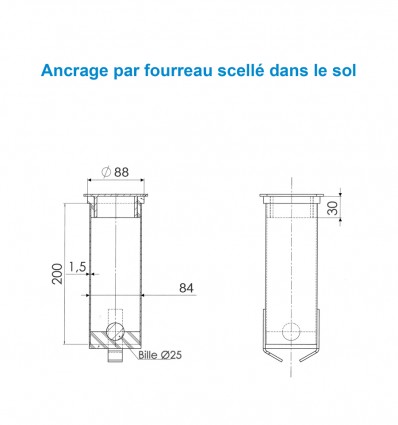

4 wheel screws and 4 safety plugs anchored in the soil,
Pool lift selector (see the schema),
(resistance to the arrachment : 2 x 2,5 tons)
The edges of the pool have different form
some are equipped with a gutter of over-flowing (1)
some with a low (2) wall.
Structure in marine 304 stainless steel and in hot galvanized S235 steel
with a waterproofing epoxy coating
Admissible load 330 Ib, Folding protection cover in PVC
