Hydraulic Lift

Archimede by JOINTEC Archimede by JOINTEC

New

This is the most economic model of lift that permits to transfer handicapped person into the buried swimming pool

More details

In stock - ship now

4 158,48 €

tax incl.

SPECIFICATIONS

It is constituted with a pivoting column articulated with an arm in order to hang either a hammock or a rigid seat or a waterchair

Elliptical private 2.png

HYDRAULIC ACTUATOR

Mobile, turning on 360°, it is moved by a hydraulic actuator (capacity 1 ton)

Elliptical private 3.png

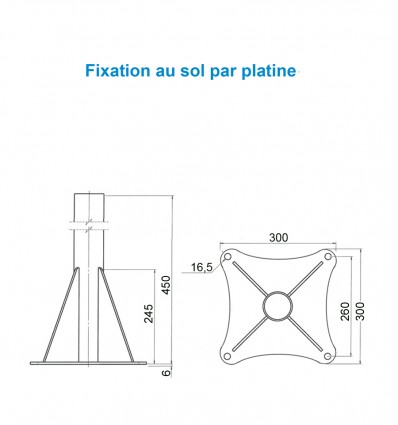

FIXATIONS

Fixation on the soil with a plate, 4 wheel screws

and 4 safety plugs anchored in the soil

(résistance to the arrachment : 2 x 2,5 tons)

Pool lift selector (see schema)

The edges of the pool have different form some are equipped with a

gutter of over-flowing (1) some with a low (2) wall.

The plugs of the plate must be positioned behind these devices Elliptical private 4.png

STAINLESS STEEL

Structure in marine 304 stainless steel and in hot galvanized S235 steel with a waterproofing epoxy coating

Admissible load 330 lb

Folding protection cover in PVC

Elliptical private 5.png
Admissible load 286 Ib
Matière flêche et tube de mât Galvanized and Thermopainted steel
Pied en acier Galvanisé + thermolaquage
Protection cover in PVC
Guarantee 3 Years
